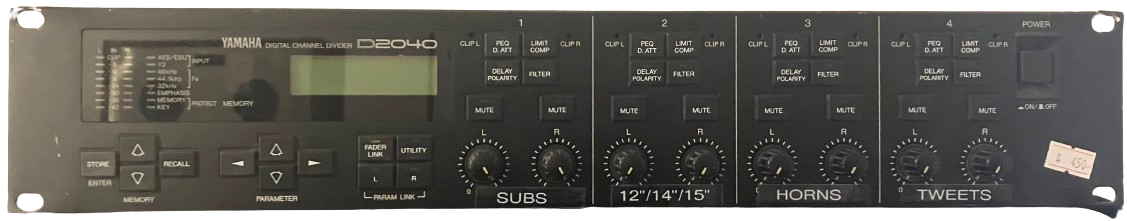

Yamaha D2040

Overview

The Yamaha D2040 is a professional digital channel divider—a programmable loudspeaker crossover and system controller built for active multi-amplifier systems. It accepts two balanced analog input channels and provides eight independently configurable balanced outputs, allowing it to manage stereo two-, three-, or four-way speaker systems.

The unit also accepts professional AES/EBU digital input. Analog signals are converted through 19-bit A/D converters, while the eight outputs use 20-bit D/A conversion. Each output channel can be assigned crossover filtering, delay, level, and polarity settings, giving the D2040 far more flexibility than a fixed analog crossover.

Why This Model Matters

The D2040 comes from an important stage in professional audio, when digital signal processing began replacing racks of dedicated analog crossovers, delay lines, and equalization hardware. Yamaha condensed those functions into a programmable two-rack-space processor that could store system configurations and recall them consistently.

Although designed for sound reinforcement and installed systems, the D2040 has also attracted technically minded hi-fi enthusiasts building active loudspeakers. Its balanced connections and eight outputs make it capable of controlling complex bi-amped, tri-amped, or quad-amped stereo systems, though it is best suited to users comfortable with professional-level setup.

Highlights

• Two-input, eight-output digital crossover
• Balanced XLR analog inputs and outputs
• AES/EBU professional digital input
• 19-bit A/D and 20-bit D/A conversion
• Configurable crossover, delay, level, and polarity functions
• Supports stereo multi-way and multi-amplifier systems
• Designed for professional sound-system control

Who It’s For

The D2040 is for active-speaker builders, professional-audio collectors, and advanced system designers who need flexible routing and crossover control. It is not a casual plug-and-play component, but in the right system it offers a level of configuration that conventional passive crossovers cannot provide.
