Pioneer

Pioneer M-90

Pioneer M-90

$1,200.00 USD
$1,200.00 USD
Sale Sold out

Overview

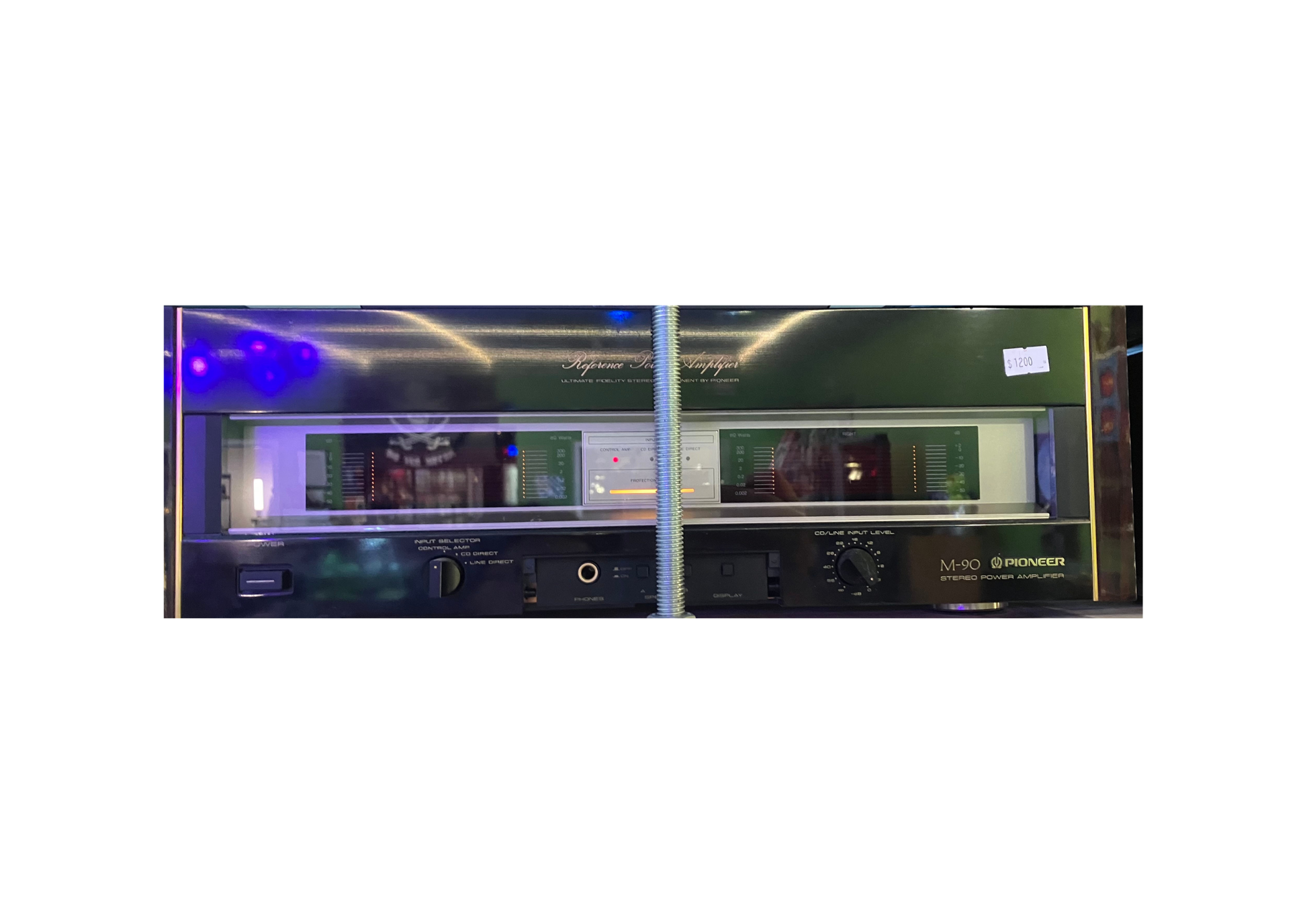

The Pioneer M-90 is a high-powered stereo amplifier introduced in 1986 as part of Pioneer’s Reference separates line. Rated at 200 watts per channel into 8 ohms from 20 Hz to 20 kHz with no more than 0.003% total harmonic distortion, it was designed for the wide dynamics and demanding loudspeaker loads associated with serious late-1980s systems.

The M-90 uses a heavily separated, dual-mono-style power supply layout with large transformers for the left and right channels, four main filter capacitors totaling 48,000 μF, and independently arranged rectification. Pioneer specified a current-supply capability of 47 amperes, supporting dynamic power figures as high as 800 watts per channel into 2 ohms.

Why This Model Matters

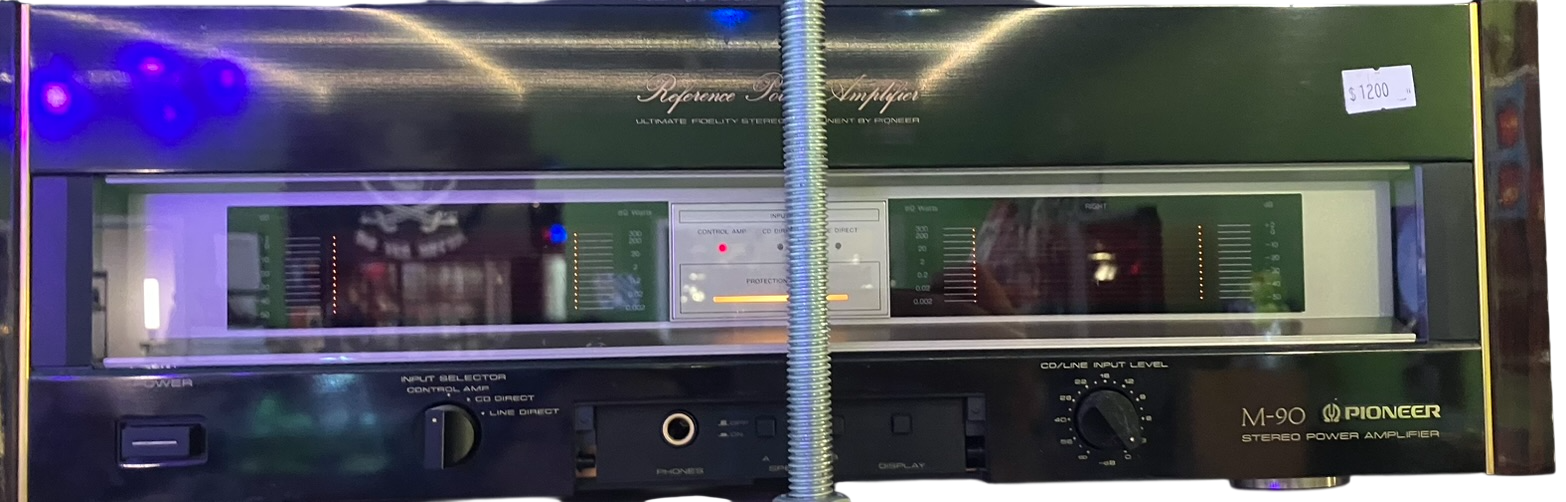

The M-90 is one of Pioneer’s best-known power amplifiers from the company’s black-and-gold Reference era. Its glossy Urushi-style finish, wood side panels, illuminated power meters, and substantial chassis gave it the visual presence expected of a statement separate, while its engineering was aimed squarely at high output and difficult loads.

It also offered several signal paths, including Control Amp, CD Direct, and Line Direct inputs, allowing users to bypass unnecessary circuitry. That combination of muscular specifications, sophisticated construction, and unmistakable styling has kept the M-90 highly respected among enthusiasts of later vintage Pioneer equipment.

Highlights

  • 200 watts per channel into 8 ohms
  • 0.003% rated total harmonic distortion
  • Dual-mono-style power-supply construction
  • 48,000 μF total main filter capacitance
  • 47-amp current-supply capability
  • Dynamic power rated up to 800 watts per channel into 2 ohms
  • Direct input paths and illuminated output meters

Who It’s For

The M-90 is for listeners seeking a genuinely powerful vintage Pioneer amplifier and collectors building a matching Reference-series system. It is particularly attractive for loudspeakers that benefit from strong current delivery and generous dynamic headroom.
