Pioneer M-75

Overview

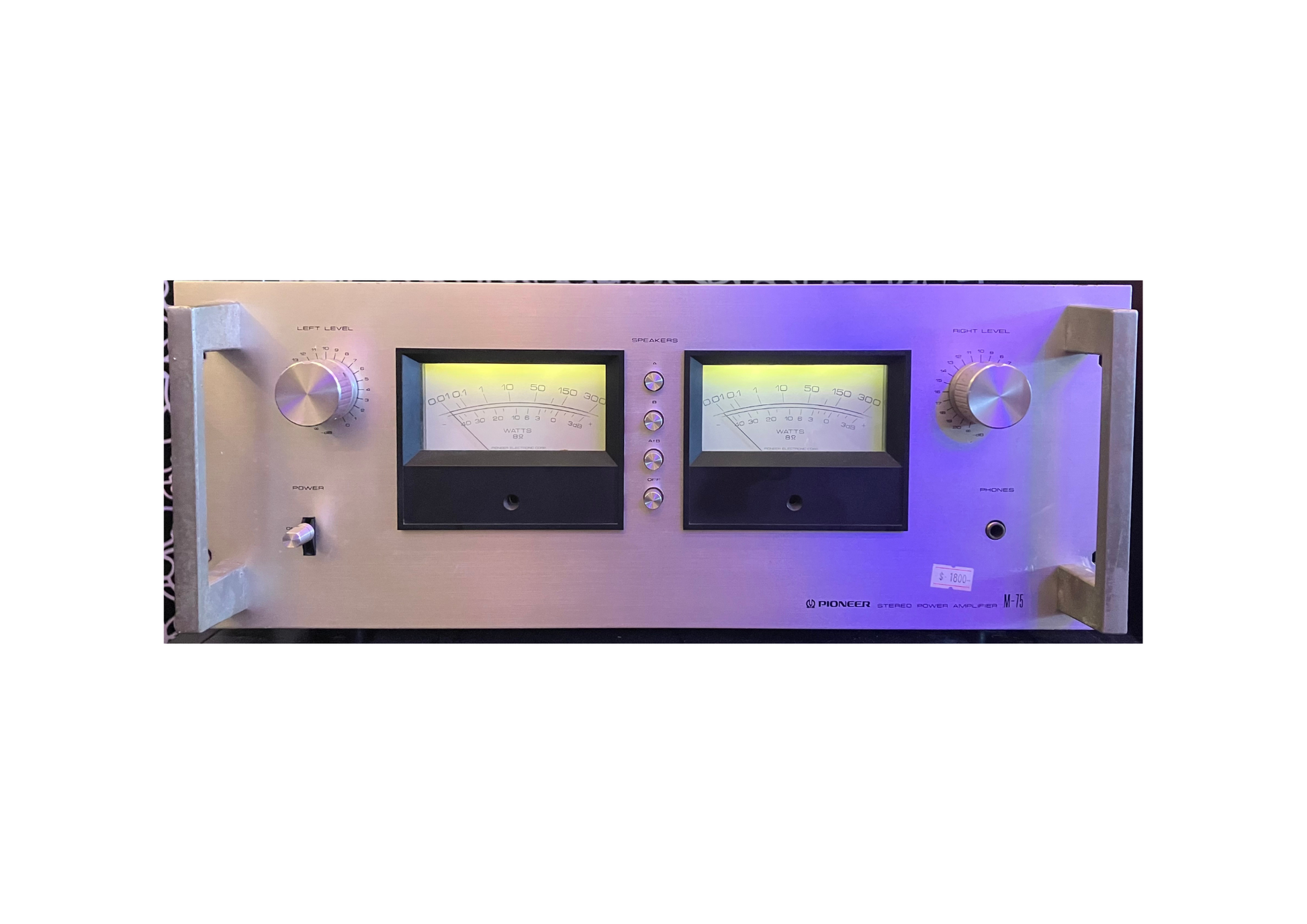

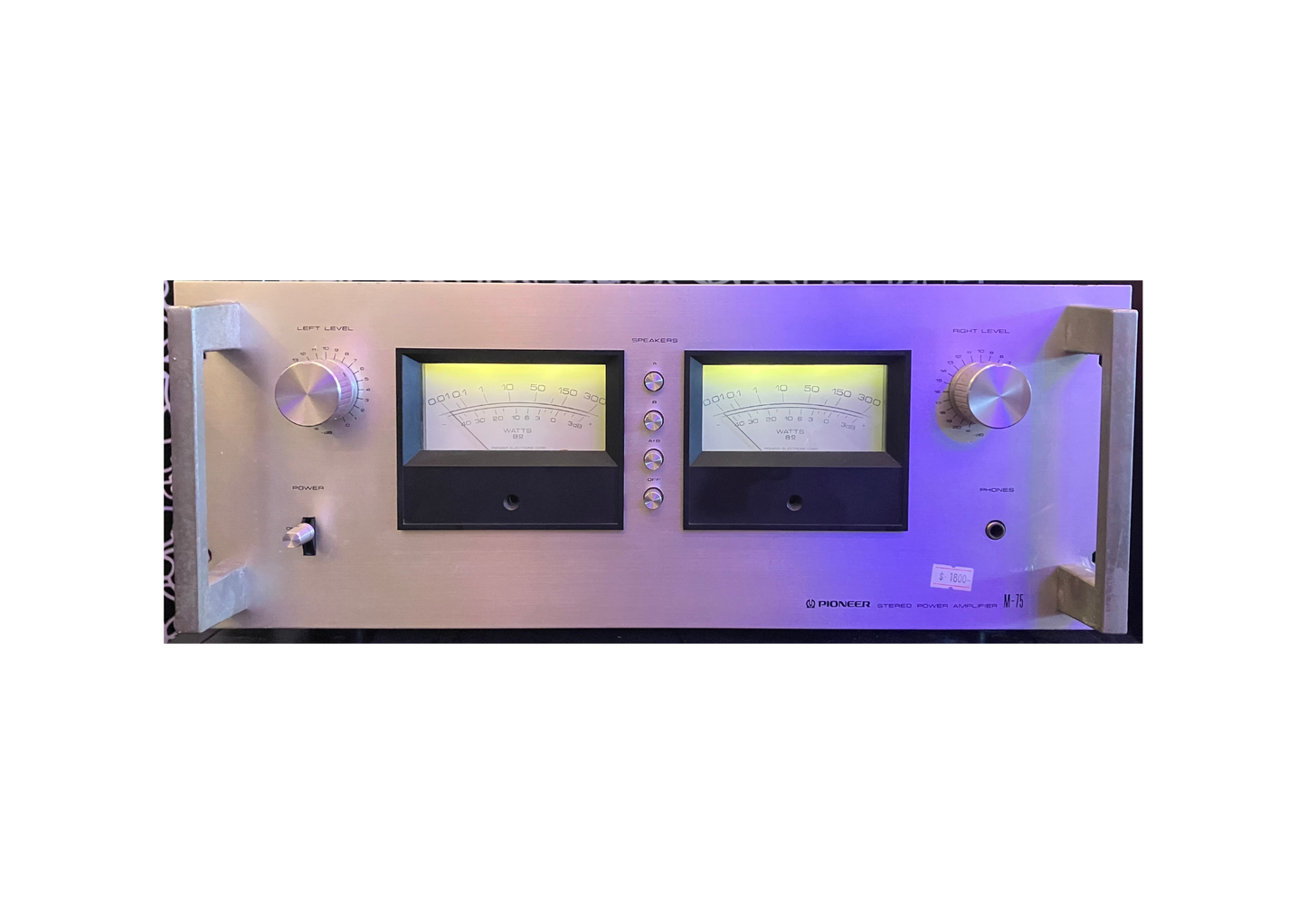

The Pioneer M-75 is a high-power stereo amplifier introduced around 1980 for the Japanese market. Rated at 150 watts per channel into 8 ohms—and 180 watts per channel into 4 ohms—it was engineered to deliver the scale and control expected from a serious standalone power amplifier.

Its internal layout is notably elaborate. Pioneer separated the left- and right-channel circuitry and provided independent power transformers for each channel, supported by four large 22,000 µF filter capacitors. Heavy copper grounding and unusually substantial internal wiring were used to reduce impedance and preserve response during demanding musical peaks.

Why This Model Matters

The M-75 occupies an interesting position in Pioneer history. Its design and specifications closely parallel the better-known SPEC-4, but the M-75 was sold under a different model designation in Japan. That makes it less familiar to many North American collectors, even though it delivers the same kind of late-1970s/early-1980s Pioneer muscle and professional-style presentation.

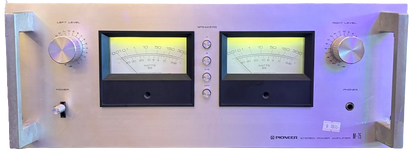

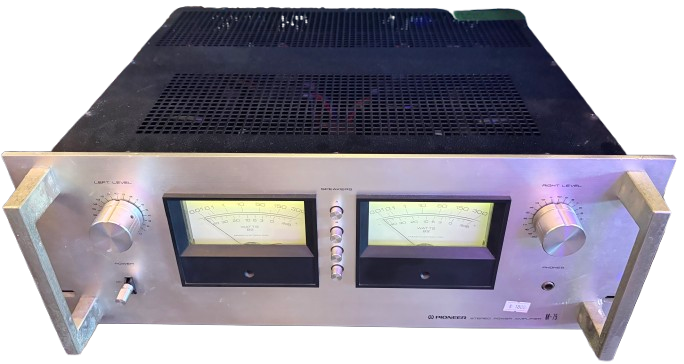

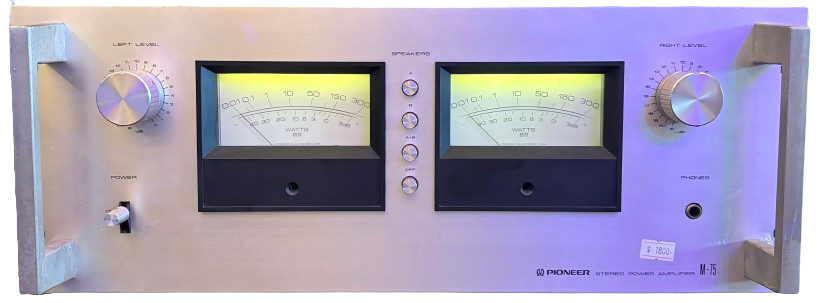

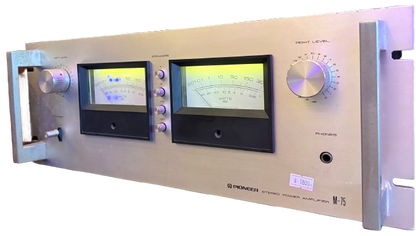

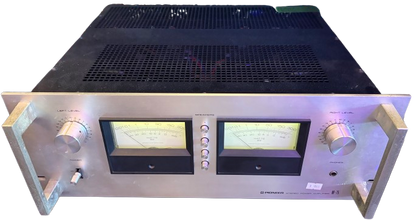

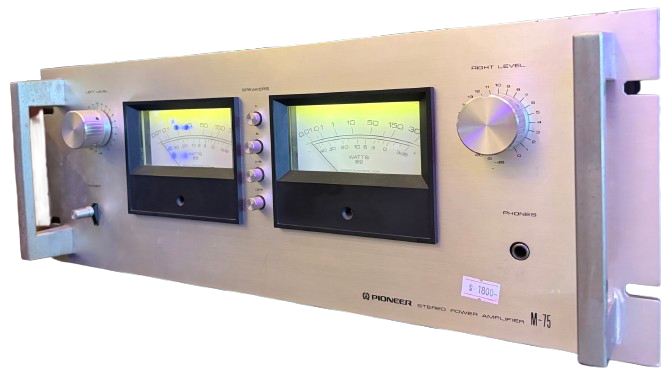

The front-panel meters are more than decoration: they are calibrated to display peak output directly from 0.01 to 300 watts into 8 ohms. Independent one-decibel-step input attenuators and A/B speaker switching add the hands-on flexibility expected from a serious separates component.

Highlights

• Introduced around 1980
• 150 watts per channel into 8 ohms
• 180 watts per channel into 4 ohms
• Dual-mono-style construction with separate power transformers
• Four 22,000 µF power-supply capacitors
• Direct-reading peak power meters
• Independent channel level controls
• Speaker A, B, or A+B operation

Who It’s For

The M-75 is for Pioneer enthusiasts, owners of less-efficient loudspeakers, and anyone who appreciates large analog meters backed by genuinely substantial engineering. Because it is a Japanese-market model, correct mains-voltage requirements should be confirmed before operation.
