Pioneer F-9

Overview

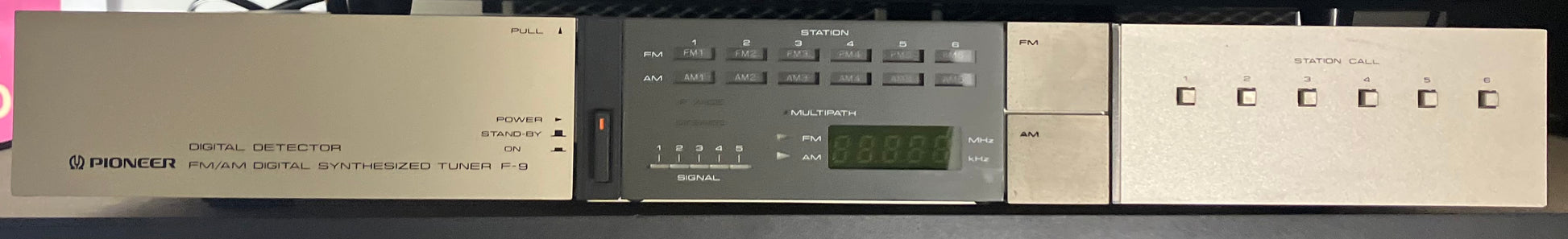

The Pioneer F-9 is a quartz-PLL digital synthesizer AM/FM tuner introduced around 1981. It arrived at a moment when manufacturers were moving beyond simple analog dials and applying increasingly sophisticated digital control to serious two-channel components. Despite its slim profile, the F-9 was not a basic convenience tuner: Pioneer equipped it with a sensitive seven-gang FM front end, digital detection, selectable wide and narrow IF bandwidths, and station memory.

Its published FM figures remain impressive, including 0.95 µV usable sensitivity, stereo separation rated at 55 dB at 1 kHz in wide mode, and distortion as low as 0.05% in stereo. The digital frequency display and quartz-referenced tuning make it easy to use, while the switchable bandwidth lets listeners choose between maximum fidelity and improved selectivity in crowded reception areas.

Why This Model Matters

The F-9 represents Pioneer’s ambitious early-1980s approach to tuner design, when digital tuning did not necessarily mean compromised analog performance. Contemporary testing praised its reception and measured performance, and tuner enthusiasts continue to recognize it as a technically accomplished model that often receives less attention than Pioneer’s larger silver-faced tuners.

Highlights

• Quartz-PLL digital synthesized AM/FM tuning
• Seven-gang FM front end
• Digital FM detection circuitry
• Wide and narrow IF bandwidth settings
• Station presets and clear digital frequency display
• Strong sensitivity, separation, and low-distortion specifications

Who It’s For

The F-9 is a strong choice for listeners who want serious broadcast performance with the precision and convenience of digital tuning. It also fits naturally into an early-1980s Pioneer system and offers an appealing alternative to the brand’s better-known analog-dial tuners.
