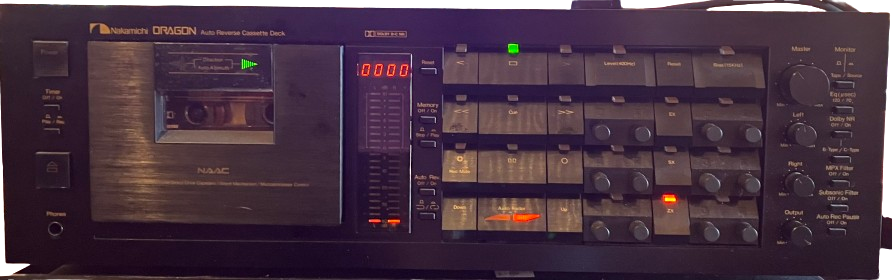

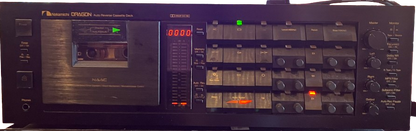

Nakamichi Dragon

Overview

The Nakamichi Dragon is one of the most celebrated cassette decks ever made. Introduced in 1982, it combined three-head recording architecture, a dual-capstan direct-drive transport, Dolby B and C noise reduction, and automatic reverse operation in a machine engineered to extract exceptional performance from the compact cassette.

Its defining feature is Nakamichi Automatic Azimuth Correction, or NAAC. Cassette tapes recorded on different machines often carry slight head-alignment errors that dull high frequencies during playback. The Dragon continuously adjusts the playback head azimuth to match the tape, in either direction, allowing it to recover detail that a conventionally aligned deck may miss.

Why This Model Matters

The Dragon earned its reputation not through styling or rarity alone, but by solving a real weakness of cassette playback. Auto-reverse decks normally involved compromises, particularly because the two directions could behave differently. Nakamichi’s NAAC system made accurate bidirectional playback the central engineering goal rather than a convenience feature added afterward.

It arrived just as the compact disc was entering the market, yet remained in production for roughly a decade. That longevity and its extraordinary technical ambition have made it a benchmark against which other cassette decks are still discussed. Calling the Dragon legendary is justified: it is one of the few tape machines recognized well beyond the circle of dedicated cassette collectors.

Highlights

• Three-head auto-reverse cassette deck
• Nakamichi Automatic Azimuth Correction
• Dual-capstan, double-direct-drive transport
• Dolby B and C noise reduction
• Automatic tape calibration and manual fine adjustment
• Rated response extending to 22 kHz with metal tape
• Introduced in 1982

Who It’s For

The Dragon is for serious cassette listeners, archivists, and collectors seeking one of the format’s defining machines. Its complexity means condition and expert servicing matter enormously, but a properly restored example remains a destination deck: historically important, technically fascinating, and capable of remarkably revealing playback.
