Mitsubishi M-C6010

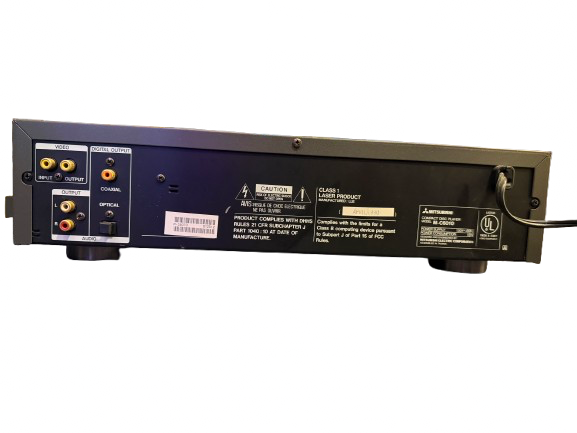

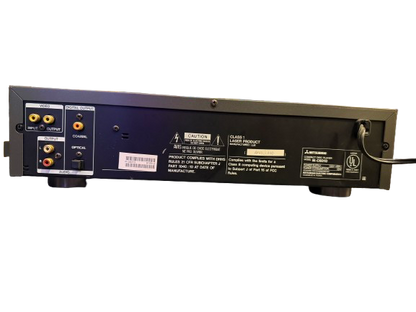

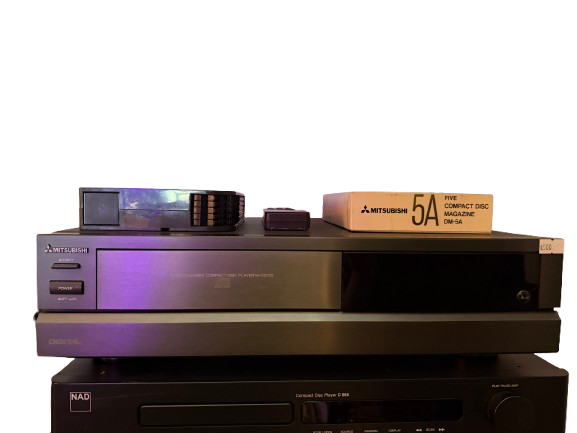

The Mitsubishi M-C6010 is a vintage 5-disc automatic changer compact disc player manufactured in the late 1980s to early 1990s, offering prolonged playback capabilities by utilizing a front-loading magazine system rather than a standard carousel tray. Operating on a 12-watt line power draw from the wall, this unit relies on a mechanical arm assembly that extracts individual discs from a removable 5-disc cartridge and positions them onto a precision laser transport spindle. The digital-to-analog decoding section translates standard 16-bit, 44.1 kHz redbook audio data into a clean analog signal, maintaining a wide frequency response of 5 Hz to 20,000 Hz with a total harmonic distortion (THD) of less than 0.005% at maximum output. Signal routing options on the rear panel include standard fixed-level stereo line-level RCA outputs operating at an output impedance of 10,000 ohms or greater, alongside both digital optical and digital coaxial terminals for direct digital-to-digital patching into a standalone preamplifier or outboard DAC. The front panel features a multi-segmented vacuum fluorescent display for track and disc numbering, alongside dedicated mechanical logic keys for random disc shuffle, program playback, track scanning, and an independent high-impedance 1/4 inch headphone jack.
