Aiwa

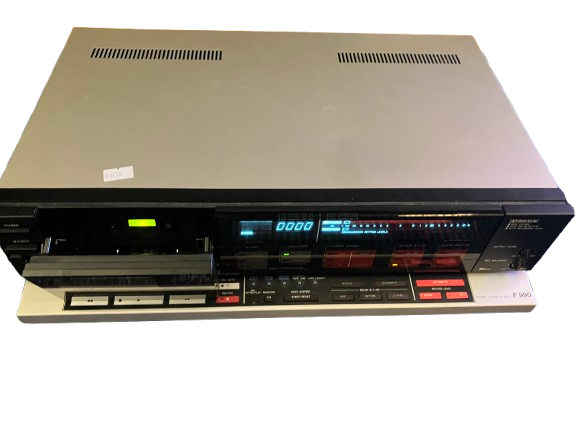

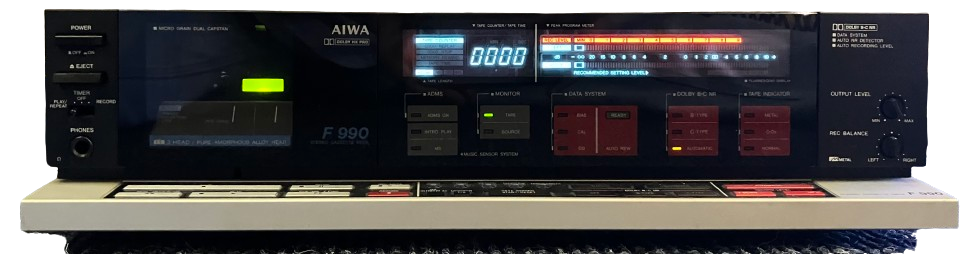

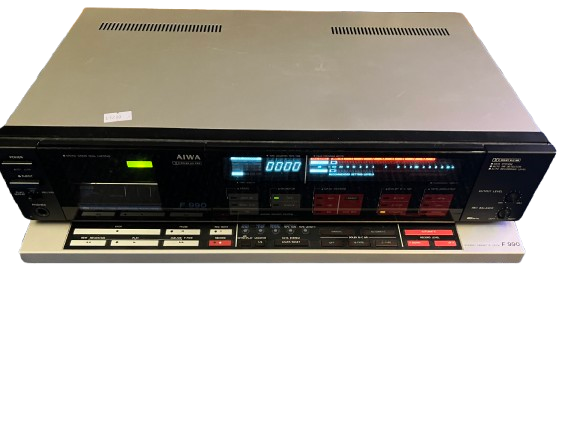

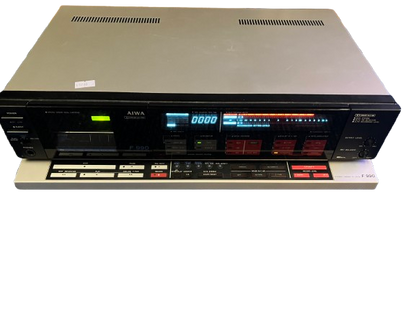

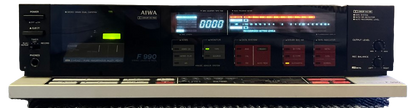

Aiwa AD-F990

Aiwa AD-F990

$1,200.00 USD
$1,200.00 USD
Sale Sold out

Overview

The Aiwa AD-F990 is an advanced three-head cassette deck from the early 1980s, built during the period when manufacturers were extracting astonishing performance from the compact cassette. Its three-head layout allows off-tape monitoring while recording, while the closed-loop dual-capstan transport provides stable tape movement across the heads.

Aiwa equipped the AD-F990 with an unusually deep set of automatic functions. Its D.A.T.A. calibration system analyzes the inserted tape and adjusts recording parameters, while automatic record-level control, automatic monitor switching, and an automatic head demagnetizing function reduce the amount of setup required. Dolby B and C noise reduction and compatibility with Type I, chrome, and metal tape complete the package.

Why This Model Matters

The AD-F990 shows how technically ambitious Aiwa could be at the height of the cassette era. The company is often remembered for later portable audio, but its best full-size decks competed seriously with established hi-fi specialists. The F990 was not simply feature-heavy; its automation was intended to make consistently strong recordings on different tape formulations.

Performance was equally serious. Published specifications include wow and flutter of 0.025 percent and frequency response extending to 21 kHz with metal tape. Those figures placed it among Aiwa’s most accomplished decks and help explain why knowledgeable cassette enthusiasts still regard it highly.

Highlights

  • Three-head recording and playback design
  • Closed-loop dual-capstan transport
  • D.A.T.A. automatic tape calibration
  • Automatic record-level and monitor functions
  • Automatic head demagnetizing system
  • Dolby B and C noise reduction
  • Rated 20 Hz–21 kHz response with metal tape
  • 0.025% wow and flutter

Who It’s For

The AD-F990 is ideal for enthusiasts who want a genuinely sophisticated recording deck without stepping into the most famous Nakamichi models. Its complexity makes restoration more demanding than on a simple two-head machine, but a properly serviced example offers excellent recording control, strong measured performance, and a fascinating snapshot of cassette technology near its peak.
